คำอธิบาย

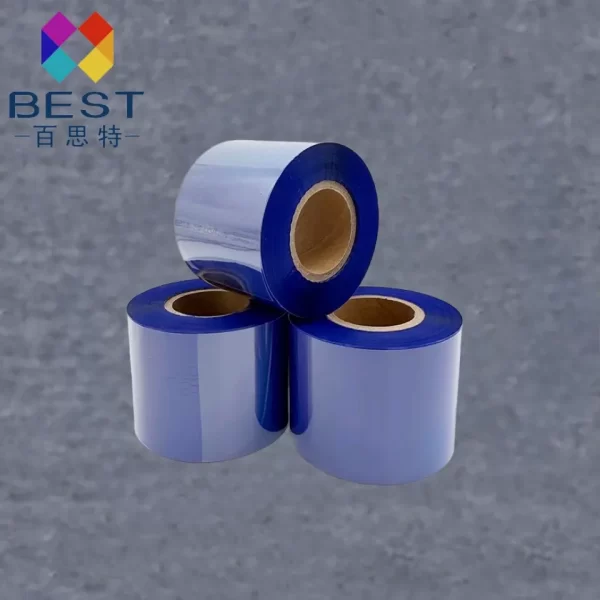

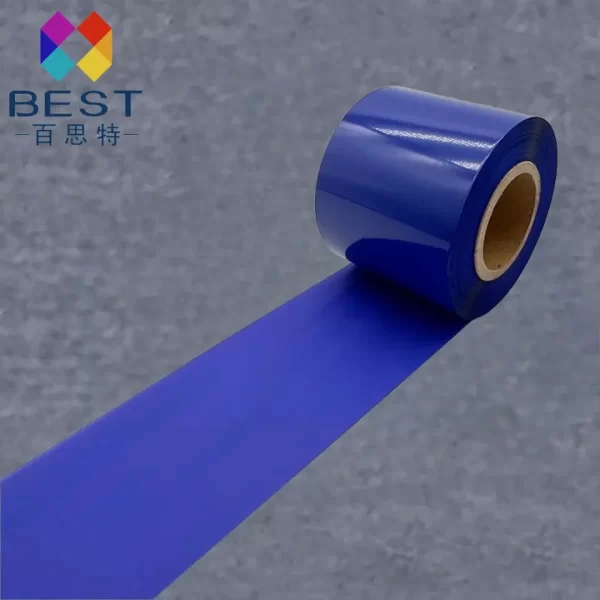

Ink ribbon BTR376B is a type of resin basement ribbon requires high printing energy to provide highest level of resistance against abradability and
excellent durability against solvents and chemicals. This type of resin ribbon printed on textile materials is able to be washed in high temperatures, or cleaned and ironed.BTR376B compatible with flat-head printers including Avery Dennison,ม้าลาย.
ข้อมูลทางเทคนิคของผลิตภัณฑ์
| บทความหมายเลข. | BTR376B |
| คำอธิบาย | Blue Ink Ribbon |
| สี | Blue |
| แอปพลิเคชัน | ฉลากดูแล |
| สนับสนุน | Polyester Film |
| Film Thickness | 4.5 ไมครอน |
| Ink Type | Resin |
| Compatible Printing Materials | Polyamide,โพลีเอสเตอร์,ซาติน,TPU |
| Tape Available Side (ขนาด) | 30มม – 110มม |
| ความยาวมาตรฐาน | 300ม. |
| Tape Winding Direction | Ink In or Ink Out for Selection |
| Tube Diameter | 1/2 นิ้วและ 1 inch for Selection |
การประยุกต์ใช้ผลิตภัณฑ์

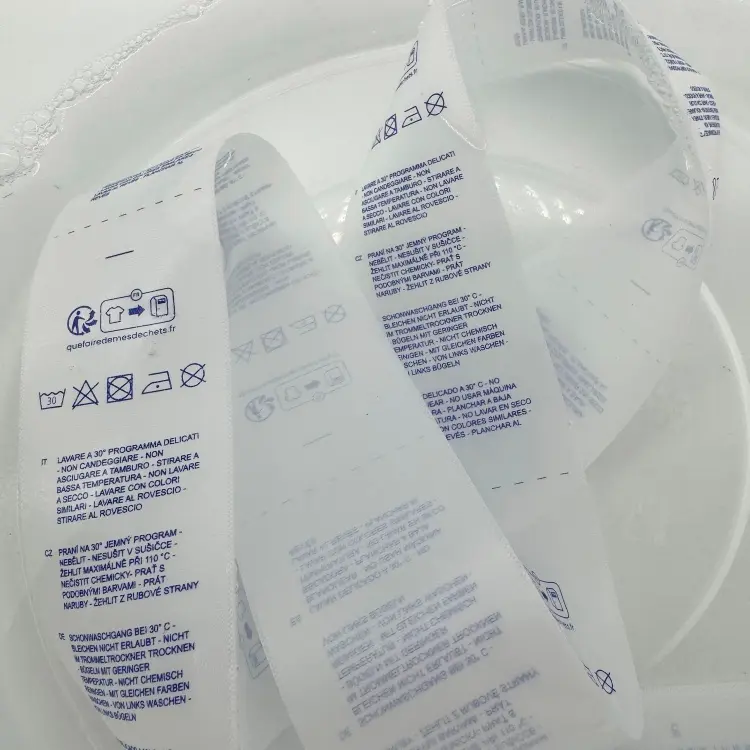

Ink Ribbon BTR376B is used for printing wash labels, mainly for labels on clothing, สิ่งทอที่บ้าน, towels, luggage, ของเล่นตุ๊กตา, และผลิตภัณฑ์อื่น ๆ.
ลักษณะผลิตภัณฑ์
Ink Ribbon BTR376B is a resin-based printer ribbon. The printer heats the ribbon through the print head, causing the resin coating (solid ink) on the surface of the ribbon to melt. The ink then firmly penetrates the fibers of the printing material, providing excellent resistance to washing, high temperatures, and scratching.
1) Strong wash resistance: no less than 60 ครั้ง (water temperature below 40°C)
2) High-temperature ironing resistance: can withstand ironing at temperatures from 150°C to over 200°C
3) Scratch resistance: resistant to wear, scratching, alcohol, and chemicals
User Guide
1-) Ink Ribbon BTR376B widths are available from 30mm to 110mm, with a standard length of 300 เมตร. When selecting the width, it should be 5-10mm wider than the material to be printed to fully cover the material.
2-) Since it is a resin-based material, the printer’s printing temperature and printing density should be appropriately increased to achieve the best printing results.
3-) When ordering, the buyer should clearly specify the ribbon ink packing direction (Ink In or Ink Out) and core size (1-inch or 0.5-inch diameter) according to the printer they are using.
BTR376 series products are supporting thermal transfer ribbons we provide for heat transfer wash label materials. They offer very stable printing quality and wash resistance. In addition to blue color, there are currently back color BTR376, white color BTR376W, และ red BTR376R มีอยู่. We welcome customers to contact us by phone or email to place orders.
